65"
Screen Size (inch) :
Epostechnologies PCAP Touch Android displays combine high performance, stylish design, and reliable quality, specifically developed for commercial digital display solutions. Ideal for retail, transportation, hospitality, and corporate spaces, these interactive displays offer users a fluid and intuitive experience. Designed for durability and 24/7 uninterrupted operation, Epostechnologies touch screens create a powerful all-in-one solution providing easy integration, easy management, and high reliability.
3840 x 2160
500 cd/m²
7/24 50.000 Hour
Key Features
Branding-Compatible
Ultra-Precise PCAP Technology
Fully Integrated Android Platform
Durable Design
Sustainable
General Overview
Superior Touch Experience with Ultra-Precise PCAP Technology
Epostechnologies PCAP (Projection Capacitive) touch technology delivers a highly sensitive, tablet-like experience and provides high accuracy with 10-point multi-touch functionality. Optimized for large-format applications, the displays are backed by glass.
A powerful, secure, and fully integrated Android platform.
Our displays come with a commercial-grade Android operating system specifically designed for performance, security, and remote management. With essential security features like secure boot, root protection, and OTA (over-the-air updates), Epostechnologies guarantees long-term stability and data security. The integrated platform supports leading content management systems (CMS) and offers easy installation and centralized control for digital display networks of all sizes.
Durable Design and Professional Appearance
Epostechnologies touchscreens are manufactured with both durability and aesthetics in mind. With tempered glass, scratch-resistant surfaces, and a robust metal casing, they are suitable for continuous use in demanding environments. Thanks to their slim and modern design, whether wall-mounted or integrated into custom enclosures, they always offer a stylish and professional look.
Flexibility for Customization and OEM
Epostechnologies offers extensive customization options for system integrators and solution providers. From branding and software customizations to pre-installed software and bespoke enclosure designs, we tailor products to your specific needs. This flexibility enables faster installation, strong brand visibility, and seamless integration into existing systems.
Sustainable and Long-Term Operational Efficiency
Efficiency and responsibility come together in every Epostechnologies product. Our Android touchscreens are designed with energy-efficient components and a long-lasting product structure, reducing maintenance needs and operating costs. Low standby power consumption, wireless updates, and long-lasting hardware features support a more sustainable digital display strategy for long-term value-oriented businesses.
Technical Specifications
Panel
Panel | Resolution | Brightness (cd/m² Typ.) | Contrast Ratio | Viewing Angle (H x V) | Response Time (ms) | Active Display Area |
|---|---|---|---|---|---|---|
65" | 3840 x 2160 | 500 cd/m² | 1200:1 (Typ.) (TM) | 89/89/89/89 | 8 (Typ, G to G) | 1428.48(W)×803.52(H) mm |
Touch
Technology | Maximum Support Points | Structure | Surface Hardness | Touch Life |
|---|---|---|---|---|
Projected Capacitive | 10 | Sensor Glass + Cover Glass | ≥6H | > 100,000,000 times |
System
CPU | RAM | Internal memory | Operating system |
|---|---|---|---|
Rockchip, Quad-core, up to 2.0GHz | 2GB / 4GB (optional) | 32GB | Android |
Network
WiFi | Ethernet | Bluetooth |
|---|---|---|
Supported | 1 × 10M/100M Adaptive Ethernet | BT 4.1 |
Media
Video format | Photo | Language | Other |
|---|---|---|---|
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | JPEG, BMP, etc. | Multi-language | Supports kiosk mode |
Interface
Card slot | HDMI | USB | Earphone |
|---|---|---|---|
SD card | HDMI Out | 2*USB 3.0 | 3.5mm earphone + microphone |
Power
Power Requirement | Power Consumption (Avg.) | Standby Mode |
|---|---|---|
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz | 240W | <0.5W |
Dimensions
Vesa Mount | Product Size (mm) (wxhxd) | Package Size (mm) | Product Weight (kg) | Package Weight (kg) |
|---|---|---|---|---|
600 x 400 | 1510 x 888 x 80 mm | 1600 x 1000 x 175 mm | 43,0 | 45,0 |
Operation
Operation | Working Conditions | Humidity |
|---|---|---|
7/24 | Operation Temp. : 0~ 50 °C / Storage Temp. : - 20~60 °C | 10 ~ 80% |
Other (Included in Pakage)
Easy Installation Guide, Warranty Document, Power Cable |
|---|

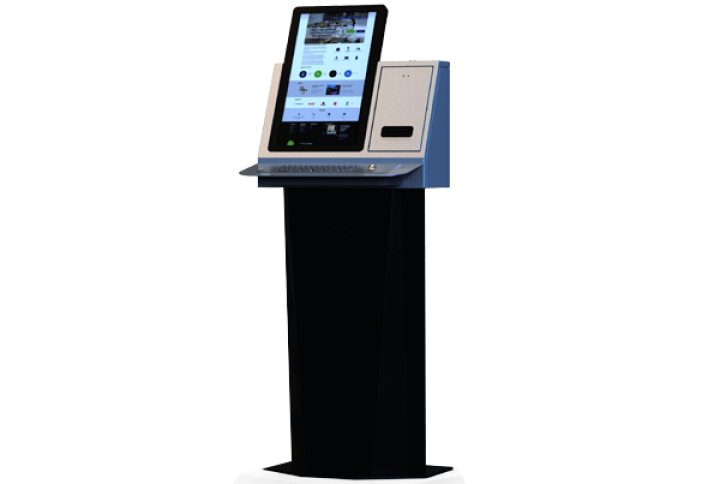

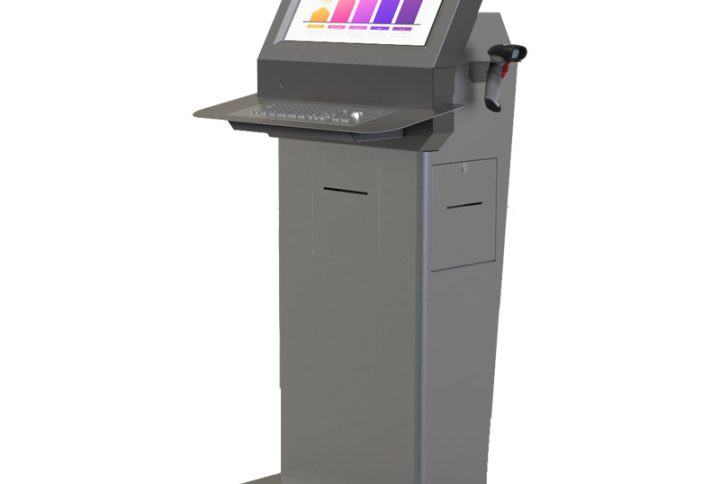

Application Images
