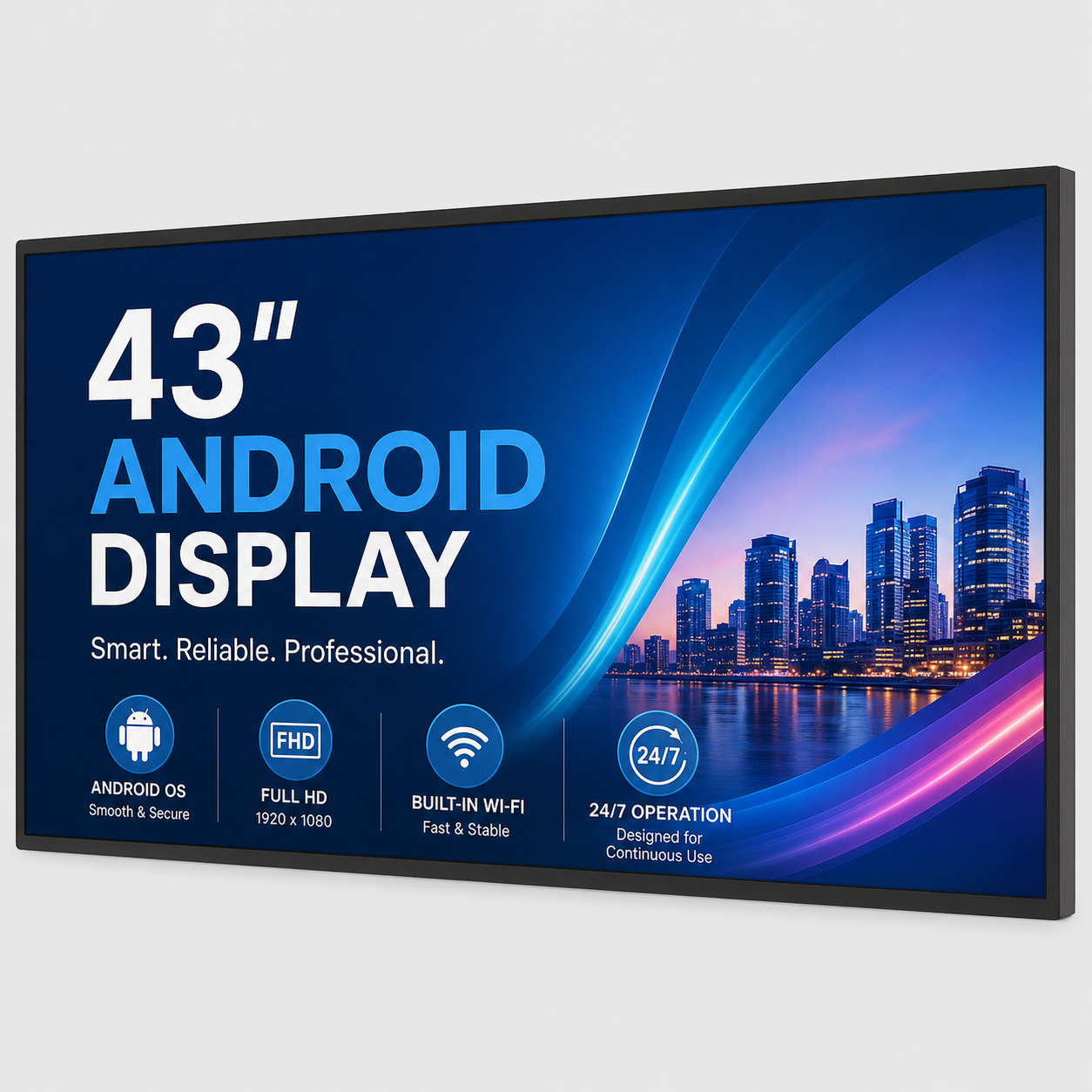

SSMA430MN 43” Android Display offers a professional screen solution for indoor digital advertising, menu boards, information sharing and wayfinding applications with its Full HD image quality and Android-based structure. Its built-in Android system helps reduce the need for an external media player, while CMS support can be offered as an additional package for centralized content management and remote updates.
1920 x 1080
700 cd/m²
7/24 50.000 Hour
Key Features
All-in-One Smart Solution
Easy Remote Management
Designed for 24/7 Commercial Use
High-Impact Visual Performance
Flexible Installation Options
General Overview
Smart Android Infrastructure
The SSMA430HN features an Android-based system that reduces the need for an external media player and makes digital content playback more practical. With a Rockchip Quad-Core processor, optional 2GB/4GB RAM and 16GB/32GB internal memory options, it provides a strong platform for advertising, menu, information and wayfinding content. Optional CMS support enables remote content management, scheduling and multi-screen control when required.
Clear Visuals and 24/7 Operation
With its 43-inch Full HD screen, 1920 × 1080 resolution and 700 cd/m² brightness, it delivers a more visible and clear visual experience for indoor environments. Its 24/7 operation capability makes it suitable for continuous digital signage usage in retail stores, restaurants, hotels, corporate spaces and public areas.
Flexible Connectivity and Easy Installation
With connectivity options such as Wi-Fi, Ethernet, Bluetooth 4.1, 2×USB 3.0, SD card support and HDMI output, the SSMA430HN adapts easily to different usage scenarios. Its 400 × 300 VESA mounting support and 50 mm slim body allow wall installation, custom project integration and use in large-scale digital signage setups.
Technical Specifications
Panel
Panel Size | Resolution | Brightness (cd/m² Typ.) | Contrast Ratio | Viewing Angle (H x V) | Response Time (ms) | Active Display Area |
|---|---|---|---|---|---|---|
43 | 1920x1080 | 700 cd/m² | 1200:1 (Typ.) (TM) | 89/89/89/89 | 8 (Typ, G to G) | 940.896(W)×529.254(H) mm |
System
CPU | RAM | Internal memory | Operation system |
|---|---|---|---|
Rockchip, Quad-core, up to 2.0GHz | 2GB / 4GB (optional) | 16GB / 32GB (optional) | Android |
Network
| WiFi | Ethernet | Bluetooth |
|---|---|---|
Supported | 1 × 10M/100M Adaptive Ethernet | BT 4.1 |
Media
| Video format | Photo | Language | Other |
|---|---|---|---|
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,VC1,RV etc.,support up to 4K | jpeg, bmp etc. | Multi-language | Supports kiosk mode |
Interface
| Card slot | HDMI | USB | Earphone |
|---|---|---|---|
SD card | HDMI Out | 2*USB 3.0 | 3.5mm earphone + Microphone |
Power
Power Requirement | Power Consumption (Avg.) | Standby Mode |
|---|---|---|
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz | 70W | <0,5W |
Dimensions
Vesa Mount | Product Size(mm) (w x h x d) | Package Size (mm) | Product Weight(kg)
| Package Weight(kg) |
|---|---|---|---|---|
400 x 300 | 964 x 552 x 50 mm | 1125 x 700 x 150 mm | 17,0 | 19,0 |
Operations
Operation
| Working Conditions | Humidity |
|---|---|---|
7/24 | Operation Temp. : 0~ 50 °C Storage Temp. : - 20~60 °C | 10 ~ 80% |
Optional Accessories
Glass Protector, Glass Logo, Colorful Glass and Frame
|
|---|
Other (Included in Package)
Easy Installation Guide, Warranty Document, Power Cable
|
|---|
