Epostechnologies FL Series 21.5” is a secure, space-saving wall-recessed interactive kiosk designed for ticketing, card top-up and payment operations with an ATM-style installation.
Select a kiosk around the user task, touch requirements and peripherals. Installation space, user reach and cable routing affect the setup. For a quotation, specify the intended application, device quantity and required connections.
1920 x 1080
1500 cd/m2
7/24 50.000 Hour
Key Features
24/7 Industrial Grade Displays
Sleek Design
Customizable
High Brightness with Vibrant Colors
General Overview

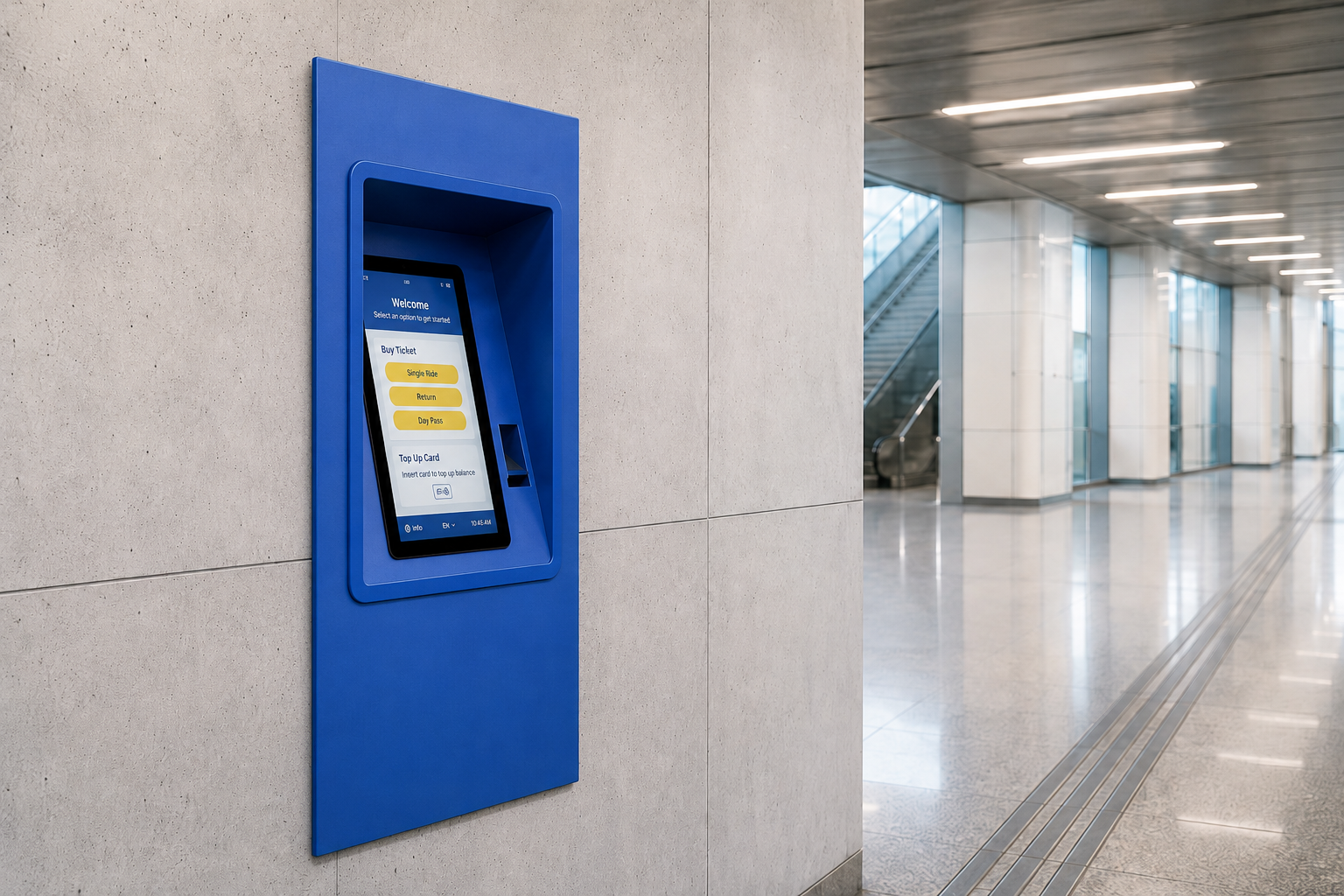

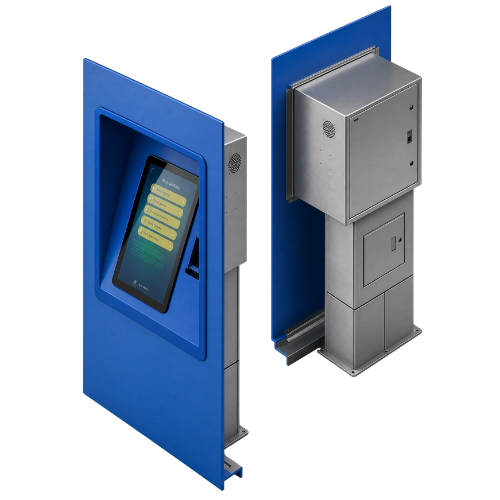

Space-Saving Wall-Recessed Kiosk Design
Epostechnologies FL Series 21.5” is a wall-recessed kiosk solution designed for stations, public buildings, campuses and service halls with heavy daily traffic. Its ATM-style built-in structure keeps the main body behind the wall, leaving only the interactive screen and required openings visible. This creates a secure, clean and space-saving self-service point for corridors, waiting areas and narrow public spaces.

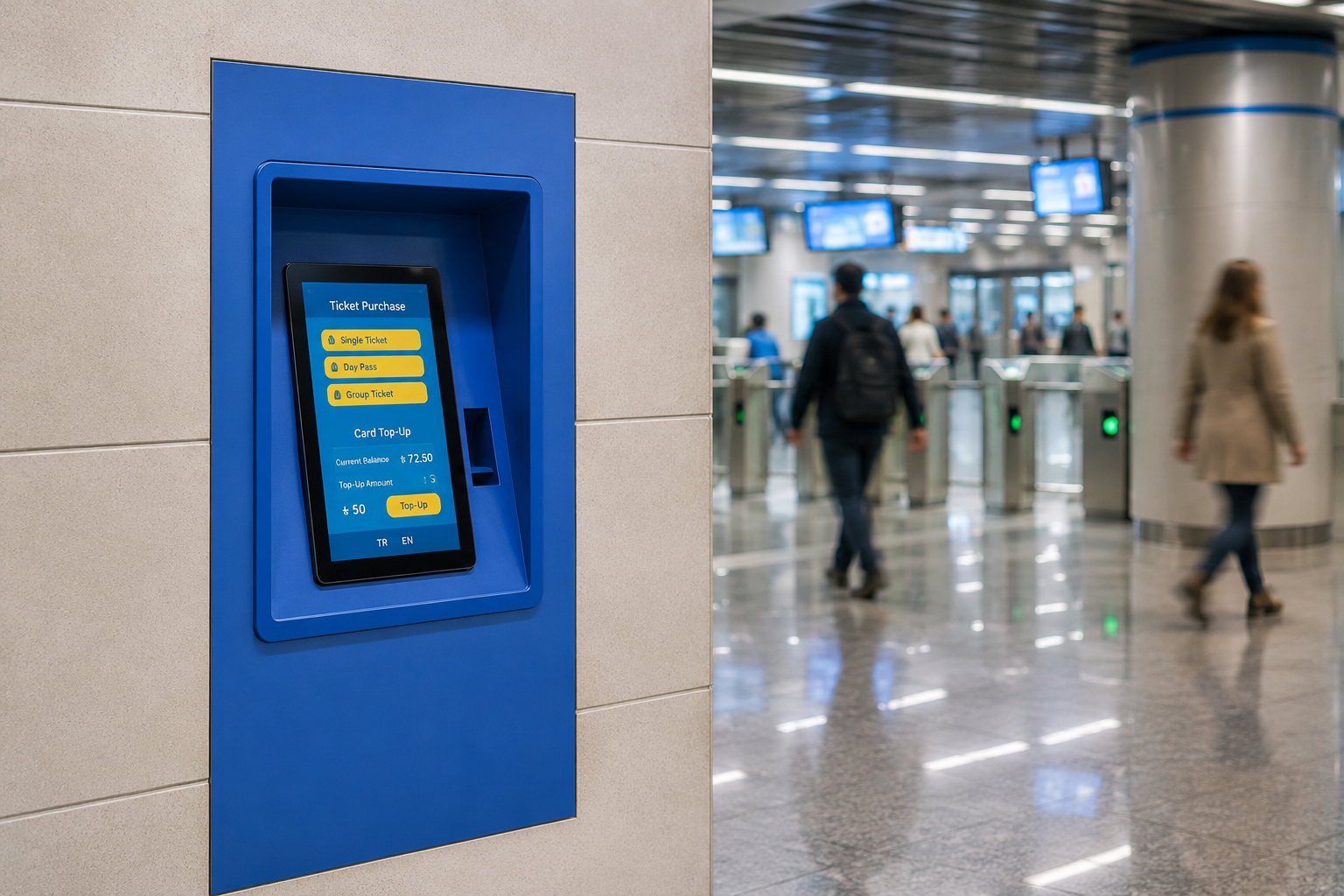

Smart Solution for Ticketing and Card Top-Up

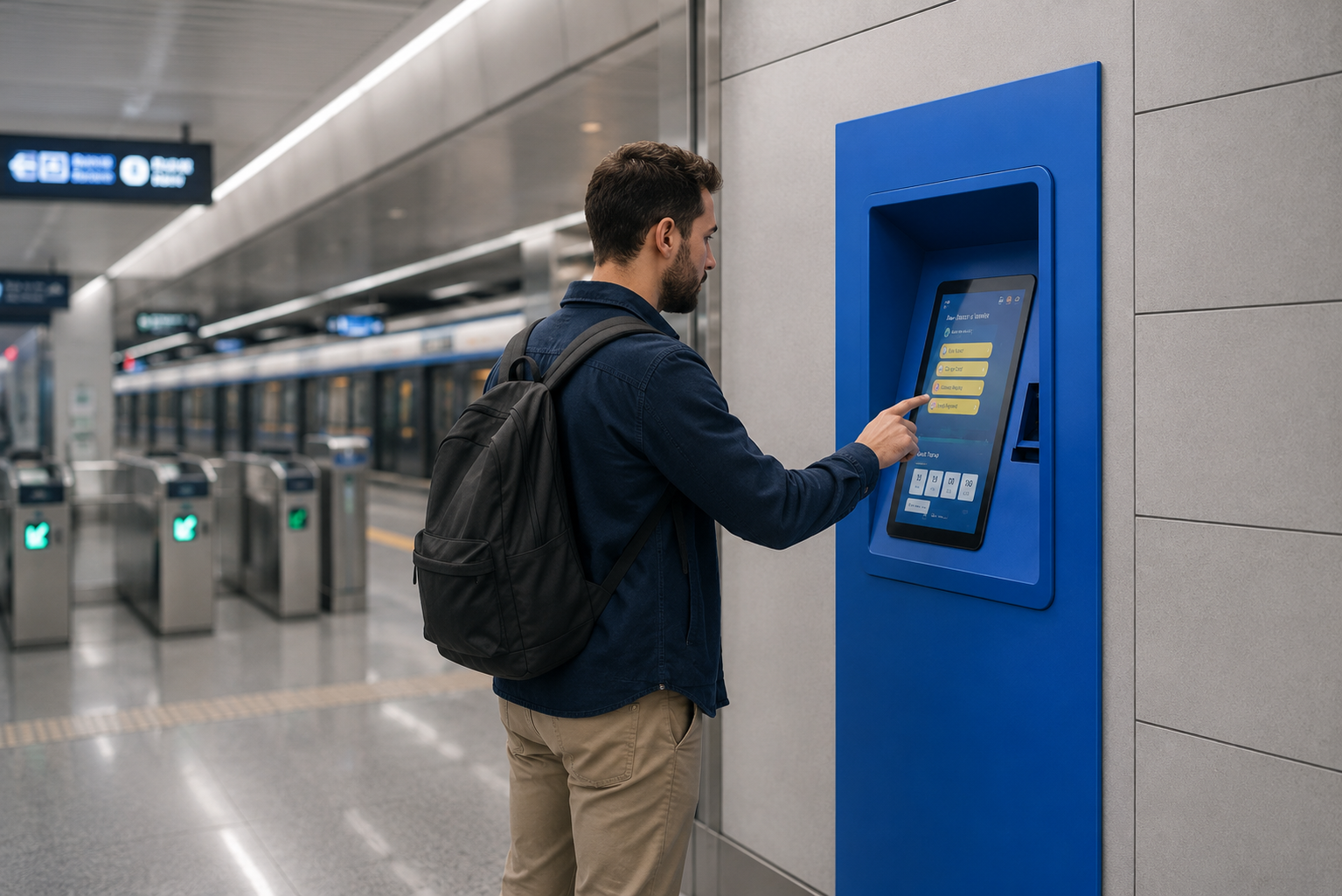

The FL Series Kiosk is ideal for ticketing, card top-up, balance inquiry, payment and automated transaction scenarios. With a layout ready for readers and transaction peripherals, it supports fast and organized workflows in transportation hubs, municipal service areas, campus systems and public access points.
Bright Display and Reliable Continuous Operation
With its 21.5” Full HD display, brightness up to 1500 cd/m² and 10-point capacitive touch technology, Epostechnologies FL Series delivers a clear and responsive user experience on wall-mounted installations. Its durable internals and low-maintenance design make it a strong choice for organizations looking for a wall-recessed payment kiosk, ticketing kiosk or card loading terminal.
Technical Specifications
Display LCD
LCD Technology | Resolution | Active Display Area | Brightness | Contrast Ratio | Viewing Angle | Response Time |
|---|---|---|---|---|---|---|
TFT-LCD | 1920x1080 | 476.064(W)×267.786(H) mm | 1500 cd/m² | 1000:1 | 88/88/88/88 | 14 (Typ, G to G) |
Touch Screen
Touch Technology | Touch Points | Interface |
|---|---|---|
Projected Capacitive | 10 | HDMI, DVI, VGA |
Power
Power Requirement | Power Consumption (Avg.) |
|---|---|
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz | 25W |
Operations
Operation Life | Operating Temperature | Storage Temperature | Humidity |
|---|---|---|---|
7/24 Working Conditions | 0 ~ 50 °C | - 20 ~ 60 °C | 10 ~ 80% |
Frequently asked questions
What are the key specifications of FL Model 21.5?
The model specification lists Resolution: 1920×1080; Brightness: 1500 cd/m². Include the model code and selected screen size when ordering, as other options in the same series may have different specifications.
How should the kiosk installation space be planned?
Consider enclosure dimensions, user reach and circulation space together. Plan power, network and peripheral cable routes; the mounting surface and maintenance access must suit the selected model.
How can I clarify the order scope?
Provide the product code, quantity, installation location and intended equipment. Ask for accessories, fixings, software and installation requirements to be identified separately in the quotation.
How should content resolution be selected for FL Model 21.5?
The model specification lists a resolution of 1920×1080. Prepare the content pixel dimensions and aspect ratio for this value; use a suitable layout rather than stretching artwork with a different shape.
What should I verify for kiosk peripherals?
List the printer, reader, computer or payment terminal required by the workflow. Check each component’s physical fit, connection, power requirements and application support.
What should be tested when receiving a kiosk?
Test the display, touch response, network connection and any selected peripherals with the intended application. Check that users can start and finish the main task and use cancel and help actions.
