When selecting a self-order kiosk, define the ordering flow and payment method first. Confirm the printer, payment terminal and ordering software included in the selected configuration. Share the screen size, installation format and intended POS software for a quotation.
768 x 1336
500 cd/m²
7/24 50.000 Hour
Key Features
24/7 Industrial Grade Displays
Sleek Design
Manufactured in Türkiye
Customizable
Android and Windows Compatible
High Brightness with Vibrant Colors
General Overview
Fast Transactions, Seamless Flow
The hardware layout is optimized for high-traffic environments, allowing users to complete actions with minimal steps. Integrated payment, printer, and scanning components ensure fast and error-free operations. This structure reduces waiting times and increases service efficiency.
✔ Integrated payment system
✔ Fast transactions with minimal waiting
✔ Improved operational efficiency

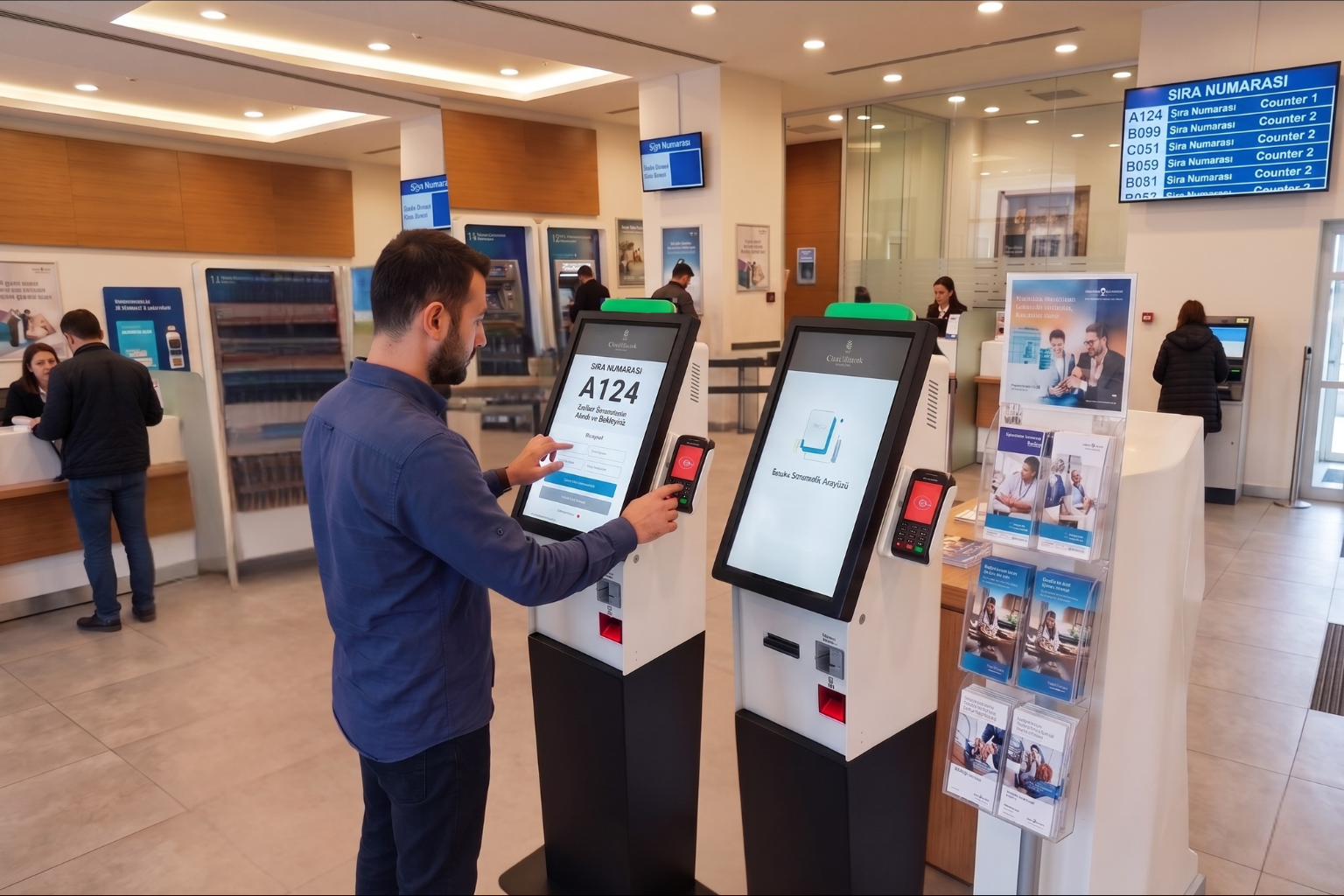

High Visual Quality, Smooth Interaction
- The 21.5” Full HD display delivers clear visuals with high brightness in different lighting conditions. Projected capacitive touch technology provides precise and responsive interaction. Multi-touch support ensures a smooth and uninterrupted user experience.
✔ Full HD high-brightness display
✔ Precise touch technology
✔ Smooth and stable interaction

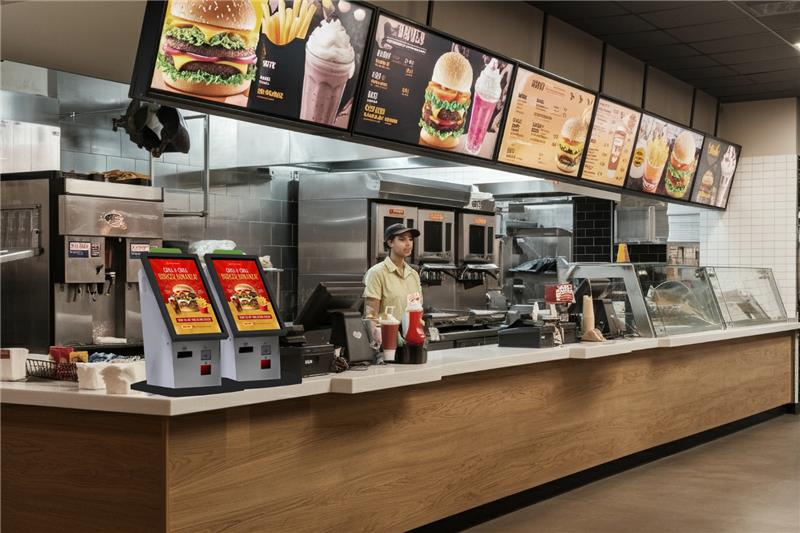

Smart Infrastructure that Reduces Workload
Powered by an Android-based system, Van simplifies content and operation management. Menus, campaigns, and content can be updated quickly and efficiently. This allows businesses to manage operations without dealing with complex technical processes.
✔ Android-based system
✔ Easy content and menu management
✔ Centralized control capability

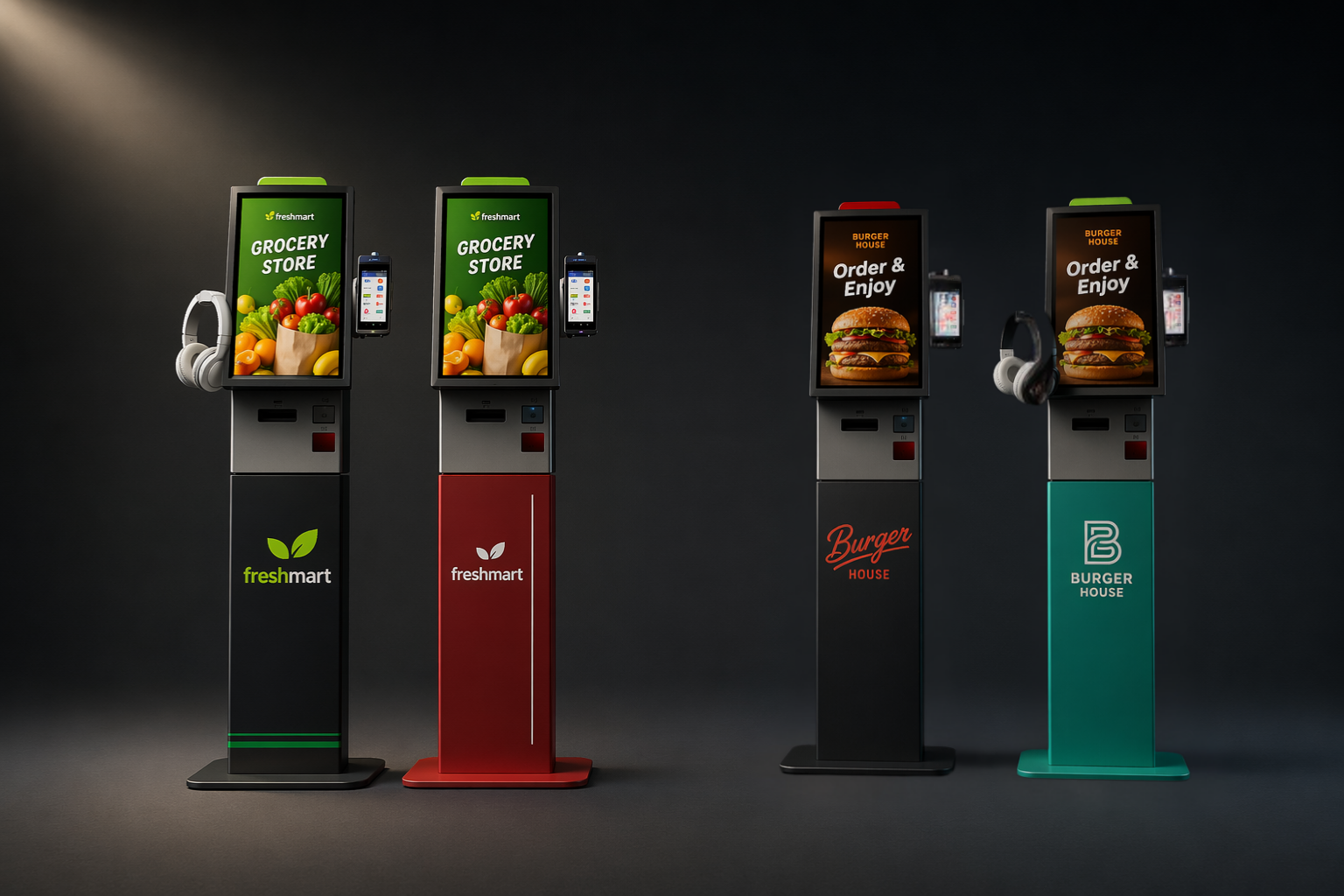

Flexible Design for Multiple Use Cases and Branding
Van is designed to adapt to different business needs while maintaining a consistent brand presence. It can be used for ordering, payment, information display, or check-in scenarios across various industries. With customizable colors, surfaces, and logo applications, it seamlessly integrates into any environment and strengthens your brand identity.
✔ Multi-purpose usage across industries
✔ Customizable colors and branding options
✔ Seamless integration into different environments

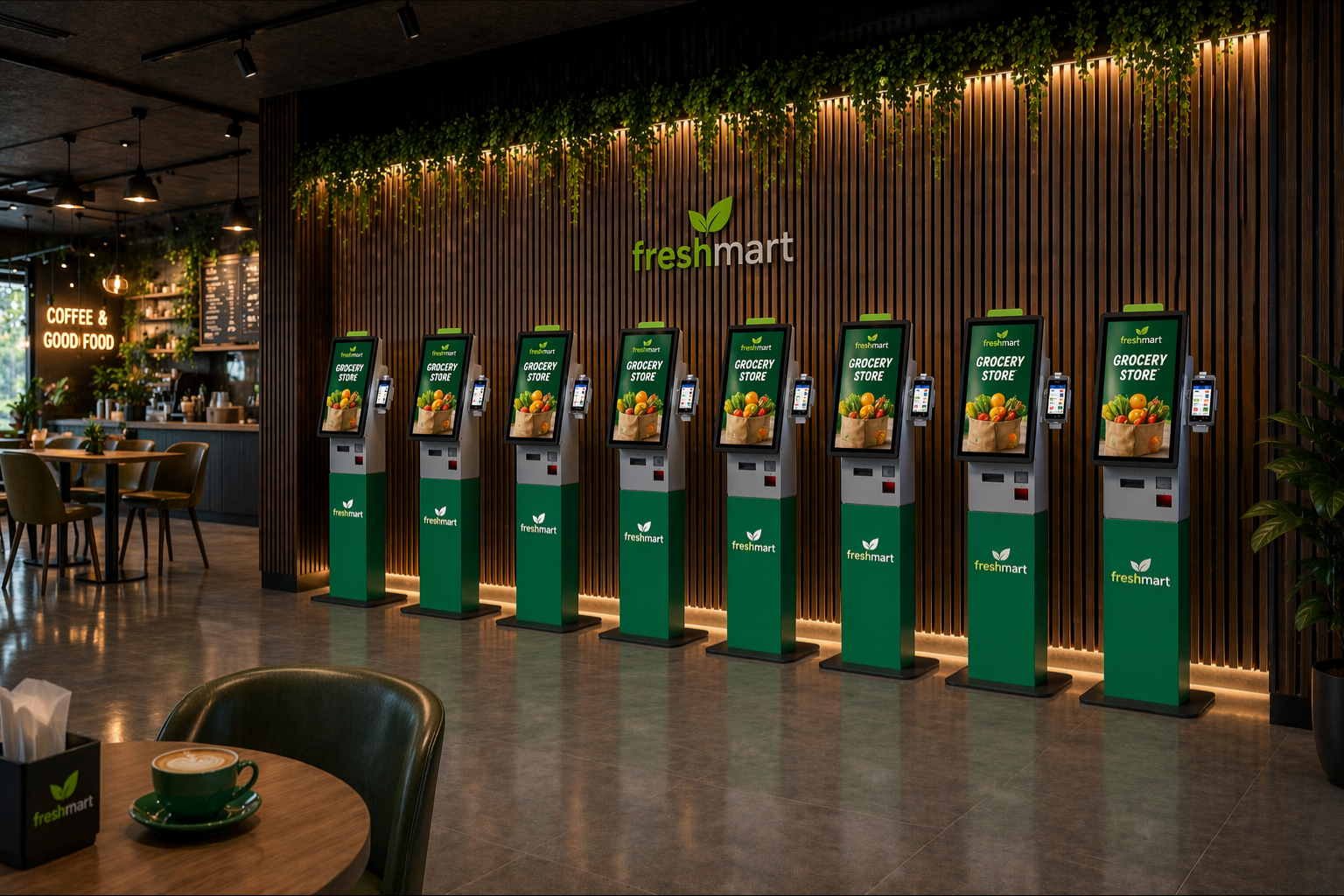

Bring Digital Experience to a Single Point

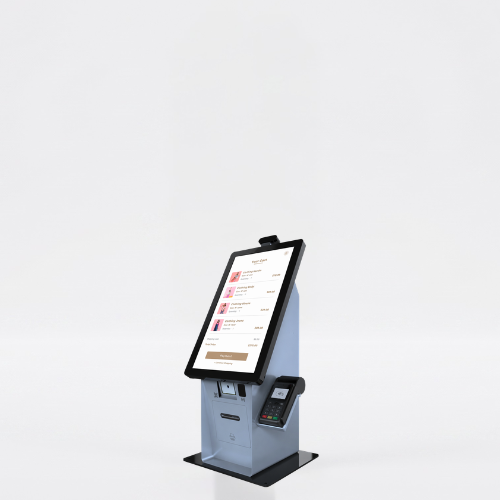

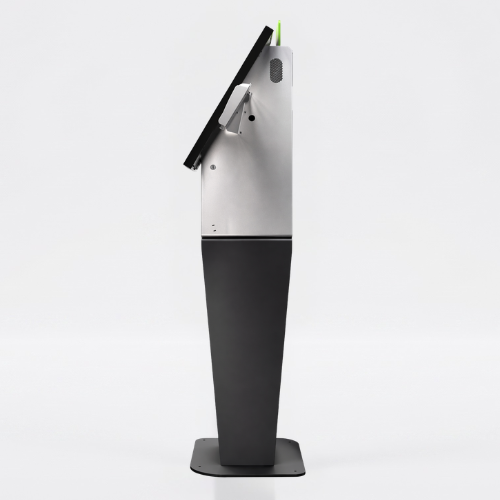

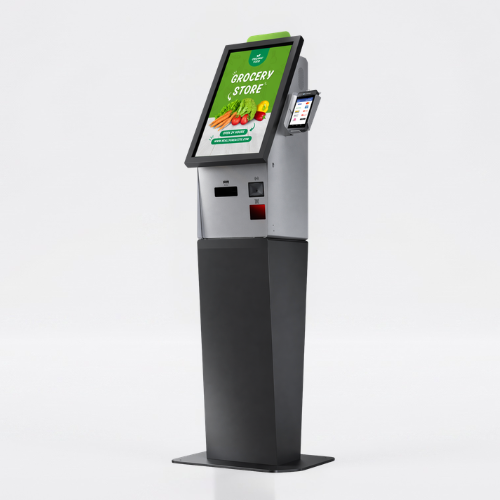

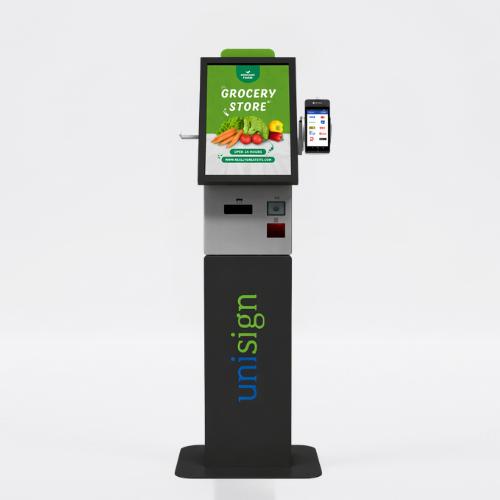

Epostechnologies Van is a 21.5” self-service kiosk designed to simplify processes and enhance customer interaction. Its angled screen creates a natural user experience, while its modern body design adds a strong technological presence to any environment. From ordering to payment, all steps are managed through a single device.
✔ 21.5” self-service kiosk structure
✔ Order and payment in one point
✔ Modern and compact design
Technical Specifications
Panel
Panel Size | Resolution | Brightness (Typ.) | Contrast | Viewing Angle (H x V) | Response Angle (G-to-G) | Active Display Area (mm) |
|---|---|---|---|---|---|---|
21.5" | 1080 x 1920 | 500 cd/m² | 1300:1 (Typ.) (TM) | 178° x 178° | 14 ms (G to G) | 476.00 (H) x 268.00 (V) |
Touch Screen
Touch Technology | Touch Points | Glass Hardness |
|---|---|---|
Projected Capacitive | 10 points Multi-touch | 6H (min.) |
Internal Player (Optional)
CPU | RAM | HDD | OS | I/O |
|---|---|---|---|---|
Quad Core | 4GB | 32GB | Android 11 | HDMI, USB, ETHERNET, WiFi |
Power
Power Requirement | Power Consumption (Avg.) | Standby Mode |
|---|---|---|
AC 100 - 240 V~ (+/- 10 %) 50/60 Hz | 32W | <0,5W |
Operations
Operation Life | Working Conditions | Humidity |
|---|---|---|
7/24 - 50.000 hours | Operation Temp. : 0~ 50 °C | Storage Temp. : - 20~60 °C | 10 ~ 80% |
Dimensions
Unit Size(mm) (w x h x d) | Unit Package Size (mm | Product Weight(kg) | Package Weight(kg) | Size with Stand (mm) | Stand Package Size(mm) | Stand Weight(kg) |
|---|---|---|---|---|---|---|
742 x 315 x 345 | 850 x 450 x 475 | 25 | 30 | 745 x 285 x 285 | 850 x 550 x 475 | 20 |
Accessories
Audio (optional) | Thermal Printer | 1D/2D Barcode Reader | Scale |
|---|---|---|---|
8Ω, 5W x 2 | 80mm | 640x480p, 30times/sec | Optional |
Optional
Floor Stand & Logo & Brand Color Customization |
|---|
OTHER (Included in Package)
Easy Installation Guide, Warranty Document, Power Cable |
|---|
Frequently asked questions
What are the key specifications of Self Order Kiosk Van 21.5?
The model specification lists Display size: 21.5″; Resolution: 1080 x 1920; Brightness: 500 cd/m². Include the model code and selected screen size when ordering, as other options in the same series may have different specifications. Review menu selection, options, basket, payment and order transmission as a complete workflow. Provide details of the restaurant software and the printer or kitchen display connections. If a payment terminal is needed, check the application connection as well as the physical fit. Include cancellation, lost connectivity and customer-assistance scenarios when reviewing the workflow. Identifying the display hardware, ordering software and payment infrastructure separately in the quotation helps define the required configuration.
Can a self-checkout kiosk work with my existing checkout system?
Compatibility depends on the checkout software and selected peripherals. Check integration scope using the software name, version, scanner and payment-provider details. Review hardware, software and installation as separate quotation items. Consider scanning, basket display, payment and receipts together. Provide the checkout software name and version, barcode types and required peripherals. A scanner or printer must be supported by the software as well as fitting physically. Review incorrect scans, cancellation and staff-assistance scenarios within the installation workflow. Match the hardware to the actual store use case and clarify payment equipment and software integration requirements before ordering.
What information is needed for a price quotation?
Share the model, quantity and installation location. Specify mounting, content playback or management software and any accessories separately so the hardware and service scope can be compared for your requirements. Consider the available installation space as well as the screen diagonal. A quotation request can include the intended task, daily operating hours, indoor or outdoor location and delivery destination. For multiple sites, list quantities and differing requirements separately so that model options can be compared. Identify any required connection or function that is not shown in the specification. This helps define a comparable equipment proposal rather than a screen price without the installation context.
How should content resolution be selected for Self Order Kiosk Van 21.5?
The model specification lists a resolution of 1080 x 1920. Prepare the content pixel dimensions and aspect ratio for this value; use a suitable layout rather than stretching artwork with a different shape. Check that text, prices and logos can be read from the intended viewing distance using sample content. Match the computer or media player’s video output settings to the display specification as well.
What should I verify for kiosk peripherals?
List the printer, reader, computer or payment terminal required by the workflow. Check each component’s physical fit, connection, power requirements and application support. Equipment shown in a product image is not necessarily standard in every configuration. Include the model code and chosen components in the quotation to establish what is supplied and which integrations are required.
What should be tested when receiving a kiosk?
Test the display, touch response, network connection and any selected peripherals with the intended application. Check that users can start and finish the main task and use cancel and help actions. Review cable access and maintenance points with the installation team. This checklist is purchasing guidance; the actual delivery, testing and installation scope should be stated in the quotation.
